DQN

DQN builds upon Q-learning by introducing a replay buffer and target network, key innovations that enhance algorithm stability. For details, see the original paper Human-level control through deep reinforcement learning .

Continuous state - discrete action

The dqn_classical.py and the dqn_quantum.py have the following features:

  • ✅ Work with the Box observation space of low-level features
  • ✅ Work with the discrete action space
  • ✅ Work with envs like CartPole-v1
  • ❌ Multiple Vectorized Environments not enabled
  • ❌ No single file implementation (requires replay_buffer.py)

Implementation details

Our implementation of DQN is essentially the same as CleanRL's. For implementation details of the classical algorithm, we refer to the CleanRL documentation. The key difference between the classical and the quantum algorithm is the DQNAgentQuantum class, as shown below

dqn_quantum.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
class DQNAgentQuantum(nn.Module):
    def __init__(self, observation_size, num_actions, config):
        super().__init__()
        self.config = config
        self.observation_size = observation_size
        self.num_actions = num_actions
        self.num_qubits = config["num_qubits"]
        self.num_layers = config["num_layers"]
        # input and output scaling are always initialized as ones
        self.input_scaling = nn.Parameter(
            torch.ones(self.num_layers, self.num_qubits), requires_grad=True
        )
        self.output_scaling = nn.Parameter(
            torch.ones(self.num_actions), requires_grad=True
        )
        # trainable weights are initialized randomly between -pi and pi
        self.weights = nn.Parameter(
            torch.FloatTensor(self.num_layers, self.num_qubits*2)
            .uniform_(-np.pi, np.pi),
            requires_grad=True,
        )
        device = qml.device(config["device"], wires=range(self.num_qubits))
        self.quantum_circuit = qml.QNode(
            parameterized_quantum_circuit,
            device,
            diff_method=config["diff_method"],
            interface="torch",
        )

    def forward(self, x):
        logits = self.quantum_circuit(
            x,
            self.input_scaling,
            self.weights,
            self.num_qubits,
            self.num_layers,
            self.num_actions,
            self.observation_size
        )
        logits = torch.stack(logits, dim=1)
        logits = logits * self.output_scaling
        return logits
dqn_classical.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
class DQNAgentClassical(nn.Module):
    def __init__(self, observation_size, num_actions):
        super().__init__()
        self.network = nn.Sequential(
            nn.Linear(observation_size, 64),
            nn.ReLU(),
            nn.Linear(64, 64),
            nn.ReLU(),
            nn.Linear(64, num_actions),
        )

    def forward(self, x):
        return self.network(x)

Additionally, we also need to specify a function for the ansatz of the parameterized quantum circuit.

dqn_quantum.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
def parameterized_quantum_circuit(
    x, input_scaling, weights, num_qubits, num_layers, num_actions, observation_size
):
    for layer in range(num_layers):
        for i in range(observation_size):
            qml.RX(input_scaling[layer, i] * x[:, i], wires=[i])

        for i in range(num_qubits):
            qml.RY(weights[layer, i], wires=[i])

        for i in range(num_qubits):
            qml.RZ(weights[layer, i + num_qubits], wires=[i])

        if num_qubits == 2:
            qml.CZ(wires=[0, 1])
        else:
            for i in range(num_qubits):
                qml.CZ(wires=[i, (i + 1) % num_qubits])

    return [qml.expval(qml.PauliZ(wires=i)) for i in range(num_actions)]

The ansatz of this parameterized quantum circuit is taken from the publication by Skolik et al Quantum agents in the Gym. The ansatz is also depicted in the figure below:

alt text

Our implementation hence incorporates some key novelties proposed by Skolik:

  • data reuploading: In our ansatz, the features of the states are encoded via RX rotation gates. Instead of only encoding the features in the first layer, this process is repeated in each layer. This has been shown to improve training performance.
  • input scaling: In our implementation, we define another set of trainable parameters that scale the features that are encoded into the quantum circuits. This has also been shown to improve training performance.
  • output scaling: In our implementation, we define a final set of hyperparameters that scales the expectation values that the quantum circuit "outputs". This has also been shown to improve training performance.

We also provide the option to select different learning rates for the different parameter sets:

dqn_quantum.py
    optimizer = optim.Adam(
        [
            {"params": agent.input_scaling, "lr": lr_input_scaling},
            {"params": agent.output_scaling, "lr": lr_output_scaling},
            {"params": agent.weights, "lr": lr_weights},
        ]
    )

Also, you can use a faster pennylane backend for your simulations:

  • pennylane-lightning: We enable the use of the lightning simulation backend by pennylane, which speeds up simulation

We also add an observation wrapper called ArctanNormalizationWrapper at the very beginning of the file. Because we encode the features of the states as rotations, we need to ensure that the features are not beyond the interval of - π and π due to the periodicity of the rotation gates. For more details on wrappers, see Advanced Usage.

Experiment results

We evaluated our implementation on the following environments:

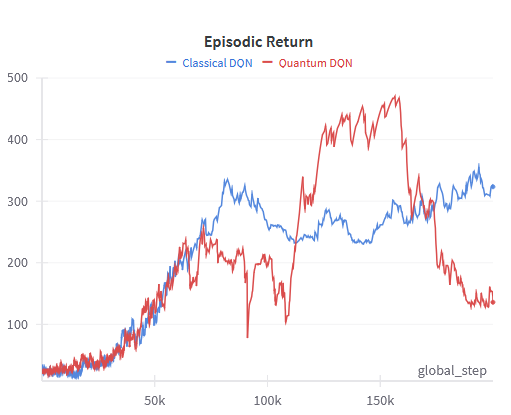

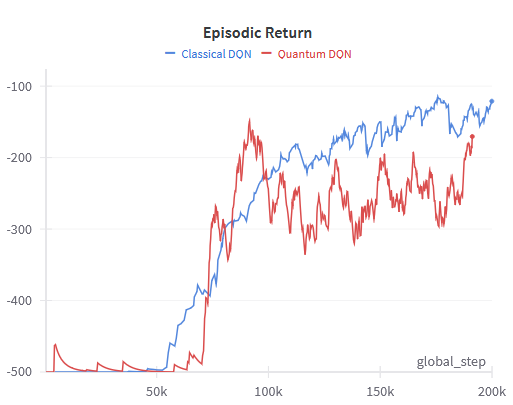

Cartpole-v1 Acrobot-v1
Image 1 Image 2

For more information see the configs folder and the weights&biases reports in the Benchmarks section.

Discrete state - discrete action

The dqn_classical_discrete_state.py and the dqn_quantum_discrete_state.py have the following features:

  • ✅ Work with the discrete observation space
  • ✅ Work with the discrete action space
  • ✅ Work with envs like FrozenLake-v1
  • ❌ Multiple Vectorized Environments not enabled
  • ❌ No single file implementation (require replay_buffer.py)

Implementation details

The implementations follow the same principles as dqn_classical.py and dqn_quantum.py. Here, we focus on the key differences between dqn_quantum_discrete_state.py and dqn_quantum.py. The same differences also apply for the classical implementations.

The key difference is in how the state is encoded. Since discrete state environments like FrozenLake return an integer value, it is straightforward to encode the state as a binary value instead of an integer. For that effect, an additional function for DQNAgentQuantum is added called encoding_input. This converts the integer value into its binary value.

dqn_quantum_discrete_state.py
    def encode_input(self, x):
        x_binary = torch.zeros((x.shape[0], self.observation_size))
        for i, val in enumerate(x):
            binary = bin(int(val.item()))[2:]
            padded = binary.zfill(self.observation_size)
            x_binary[i] = torch.tensor([int(bit) * np.pi for bit in padded])
        return x_binary
Now we just need to also call this function before we pass the input to the parameterized quantum circuit:

dqn_quantum_discrete_state.py
    def forward(self, x):
        x_encoded = self.encode_input(x)
        logits = self.quantum_circuit(
            x_encoded,
            self.input_scaling,
            self.weights,
            self.num_qubits,
            self.num_layers,
            self.num_actions,
            self.observation_size
        )
        logits = torch.stack(logits, dim=1)
        logits = logits * self.output_scaling
        return logits

Experiment results

We evaluated our implementation on the following environments:

Image 1
FrozenLake-v1 (is_slippery=False)

For more information see the configs folder and the weights&biases reports in the Benchmarks section.

Jumanji Environments

The dqn_classical_jumanji.py and the dqn_quantum_jumanji.py have the following features:

  • ✅ Work with jumanji environments
  • ✅ Work with envs like Traveling Salesperson and Knapsack
  • ❌ Multiple Vectorized Environments not enabled
  • ❌ No single file implementation (require replay_buffer.py)
  • ❌ Require custom wrapper file for jumanji (jumanji_wrapper.py)

Implementation details

The implementations follow the same principles as dqn_classical.py and dqn_quantum.py. Here, we focus on the key differences between dqn_quantum_jumanji.py and dqn_quantum.py. The same differences also apply for the classical implementations.

For most of the jumanji environments, the observation space is quite complex. Instead of simple numpy arrays for the states, we often have dictionary states which vary in size and shape. E.g. the Knapsack problem returns a state of shape

  • weights: jax array (float) of shape (num_items,), array of weights of the items to be packed into the knapsack.
  • values: jax array (float) of shape (num_items,), array of values of the items to be packed into the knapsack.
  • packed_items: jax array (bool) of shape (num_items,), array of binary values denoting which items are already packed into the knapsack.
  • action_mask: jax array (bool) of shape (num_items,), array of binary values denoting which items can be packed into the knapsack.

In order to parse this to a parameterized quantum circuit or a neural network, we can use a gym wrapper which converts the state again to an array. This is being done when calling the function create_jumanji_wrapper. For more details see Jumanji Wrapper.

dqn_quantum_jumanji.py
def make_env(env_id, config):
    def thunk():
        env = create_jumanji_env(env_id, config)
        env = ReplayBufferWrapper(env)

        return env

    return thunk
dqn_quantum_jumanji.py
class DQNAgentQuantum(nn.Module):
    def __init__(self, num_actions, config):
        super().__init__()
        self.config = config
        self.num_actions = num_actions
        self.num_qubits = config["num_qubits"]
        self.num_layers = config["num_layers"]
        self.block_size = 3  # number of subblocks depends on environment

Because the state is now growing quickly in size as the number of items of the Knapsack is increased, we use a slightly different approach to encode it: Instead of encoding each feature of the state on an individual qubit, we divide the state again into 3 blocks, namely weights, valuesand packed_items. This will be important for the modification of our ansatz for the parameterized quantum circuit which you can see below:

dqn_quantum_jumanji.py
def parametrized_quantum_circuit(
    x, input_scaling, weights, num_qubits, num_layers, num_actions
):

    # This block needs to be adapted depending on the environment.
    # The input vector is of shape [4*num_actions] for the Knapsack:
    # [action mask, packed items, values, weights]

    annotations = x[:, num_qubits : num_qubits * 2]
    values_kp = x[:, num_qubits * 2 : num_qubits * 3]
    weights_kp = x[:, 3*num_qubits:]

    for layer in range(num_layers):
        for block, features in enumerate([annotations, values_kp, weights_kp]):
            for i in range(num_qubits):
                qml.RX(input_scaling[layer, block, i] * features[:, i], wires=[i])

            for i in range(num_qubits):
                qml.RY(weights[layer, block, i], wires=[i])

            for i in range(num_qubits):
                qml.RZ(weights[layer, block, i+num_qubits], wires=[i])

            if num_qubits == 2:
                qml.CZ(wires=[0, 1])
            else:
                for i in range(num_qubits):
                    qml.CZ(wires=[i, (i + 1) % num_qubits])

    return [qml.expval(qml.PauliZ(wires=i)) for i in range(num_actions)]

We encode each of these blocks individually in each layer. By doing so, we can save quantum circuit width - the number of qubits - by increasing our quantum circuit depth - the number of quantum gates. See our Tutorials section for better ansatz design.

Experiment results

We evaluated our implementation on the following environments:

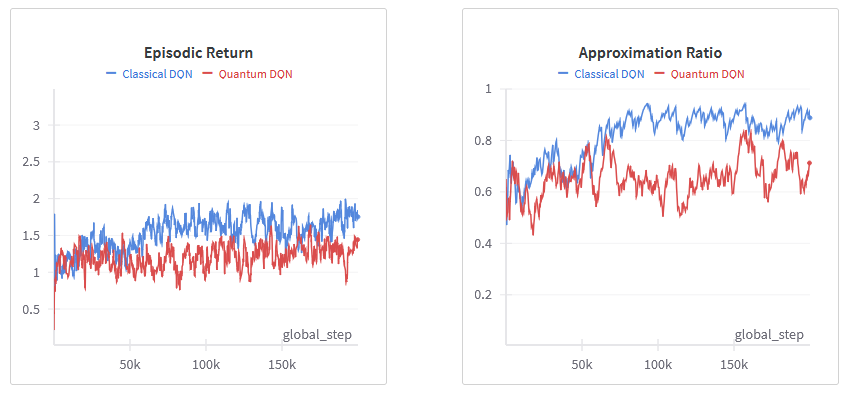

Image 1
Knapsack
Image 2
TSP

For more information see the configs folder and the weights&biases reports in the Benchmarks section.
